HD Image Sensor
1/3-inch CMOS with 1920 × 1080 resolution
Auto-Rückfahrkamera · CAM-078
Universelle HD-Rückfahrkamera CAM-078
Compact waterproof HD rear-view camera designed for universal vehicle backup applications.
1920 × 1080
Resolution
170°
Viewing Angle
IP69K
Waterproof Rating
CVBS / AHD
Video Output
DC 12VOperating Voltage
4-pin aviation / RCAAnschluss
OEM / ODMProject customization
Compact Design.
Universal Rear Visibility.
The CAM-078 is a compact universal backup camera for rear-view monitoring and parking support. Its small housing is intended for vehicle installations that need a discreet camera position and broad rear coverage.
The current specification lists a 1/3-inch CMOS sensor, 1920 × 1080 resolution, a 170° viewing angle and IP69K waterproof protection. CVBS or AHD output and 4-pin aviation or RCA connectors are available for system matching.
Built for the Road.
Defined by the Details.
Designed for reliable commercial vehicle monitoring in demanding road environments.
170°
170° Viewing Angle
Wide rear coverage for reversing and monitoring

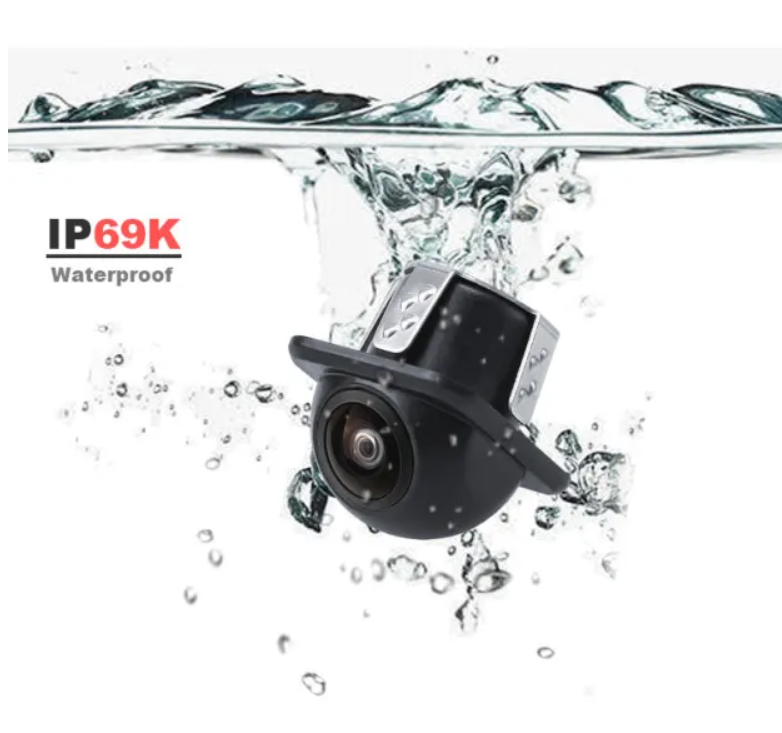

IP69K
IP69K Housing
Waterproof construction for exterior vehicle use
Night Vision
Night Vision
Supports low-light rear monitoring

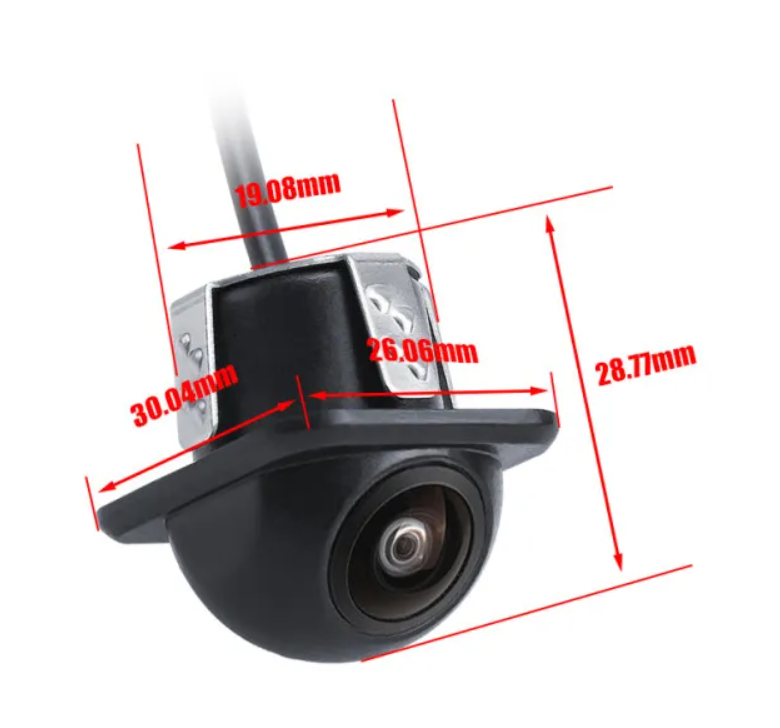

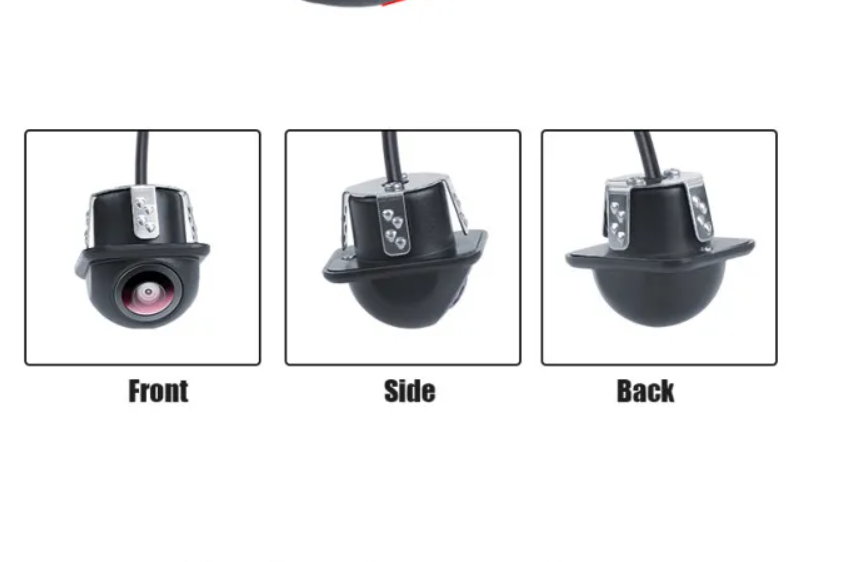

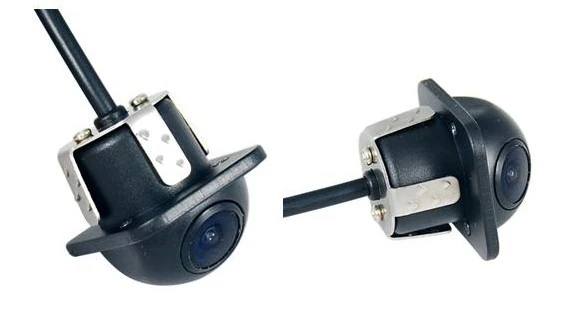

See the CAM-078
from Every Angle
Explore the CAM-078 product views and connection details.
Technische Spezifikationen
Technical data for system selection, sample review and project confirmation.
| Image Sensor | 1/3-inch CMOS |
|---|---|
| Resolution | 1920 × 1080 |
| Viewing Angle | 170° |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 12V |
| Operating Temperature | −20°C to +70°C |
| Video Output | CVBS / AHD |
| Anschluss | 4-pin aviation / RCA |
Designed for Commercial Vehicle Applications
Verified application coverage based on the available product information.
Truck Monitoring
Camera integration support for long-body commercial vehicles.

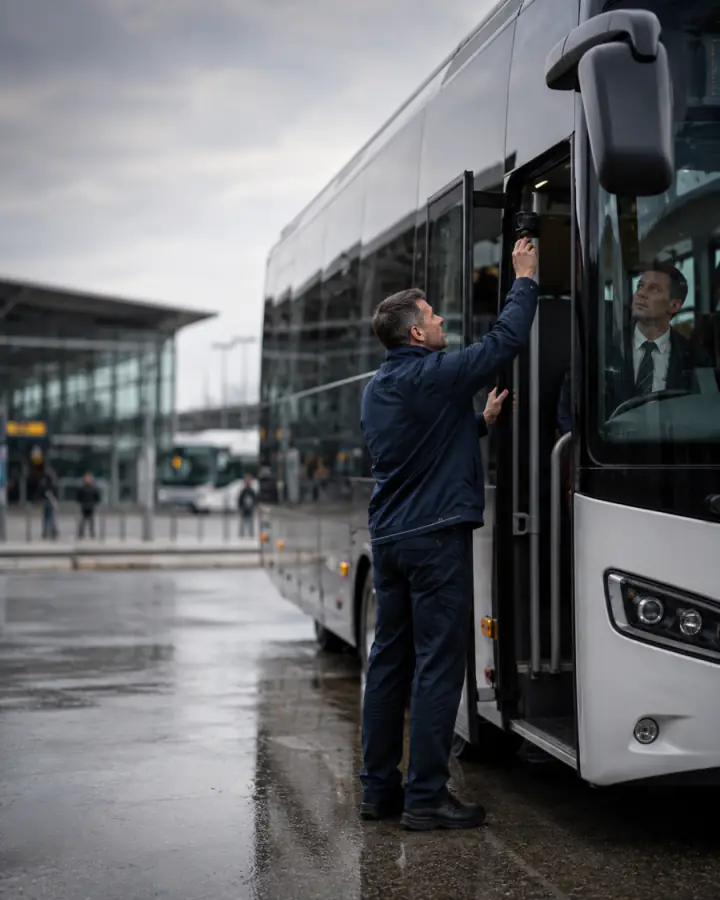

Bus Safety Monitoring
Additional vehicle visibility support for buses operating in busy passenger environments.

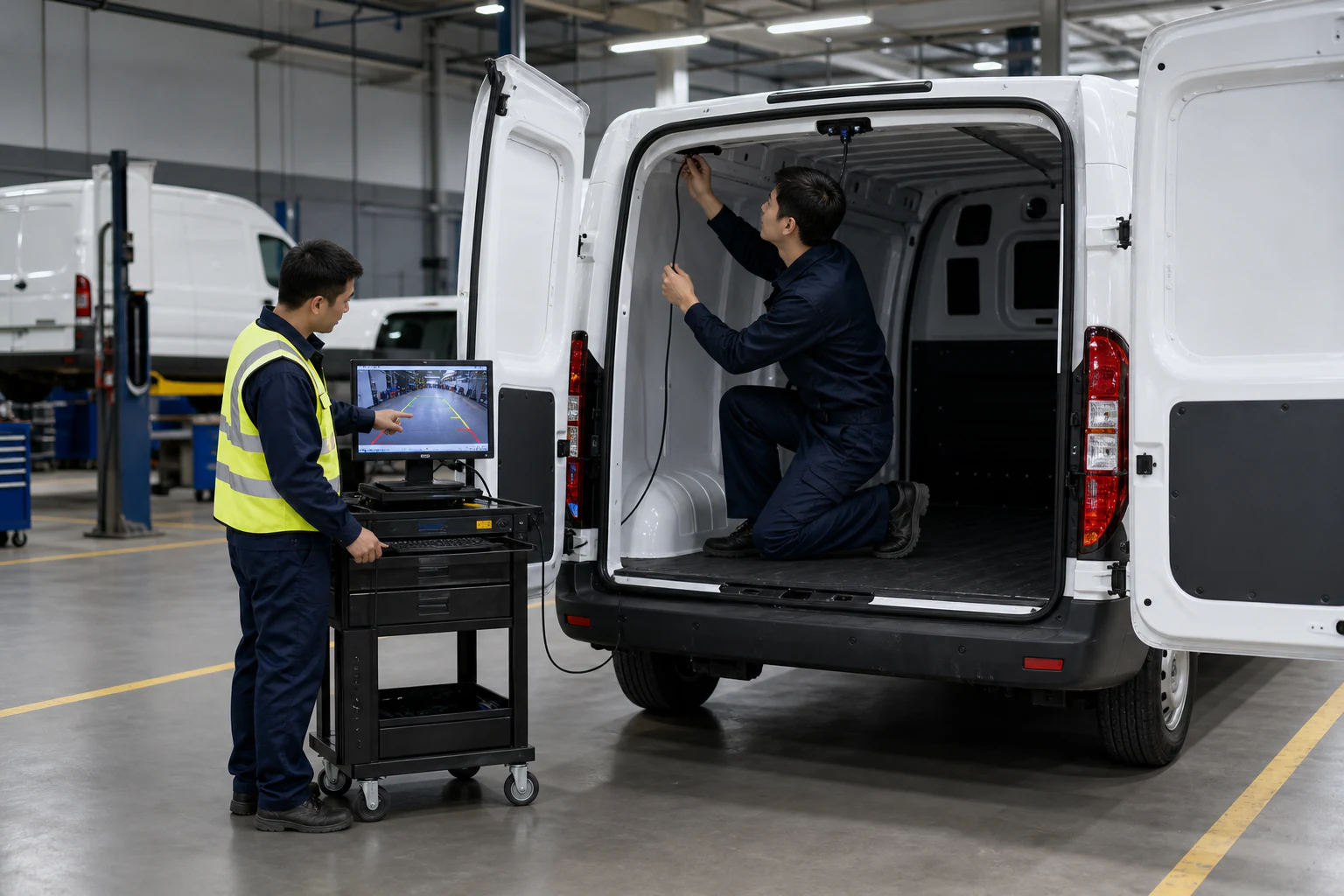

Fleet Safety Systems
A compact camera format for fleet retrofit and vehicle monitoring projects.

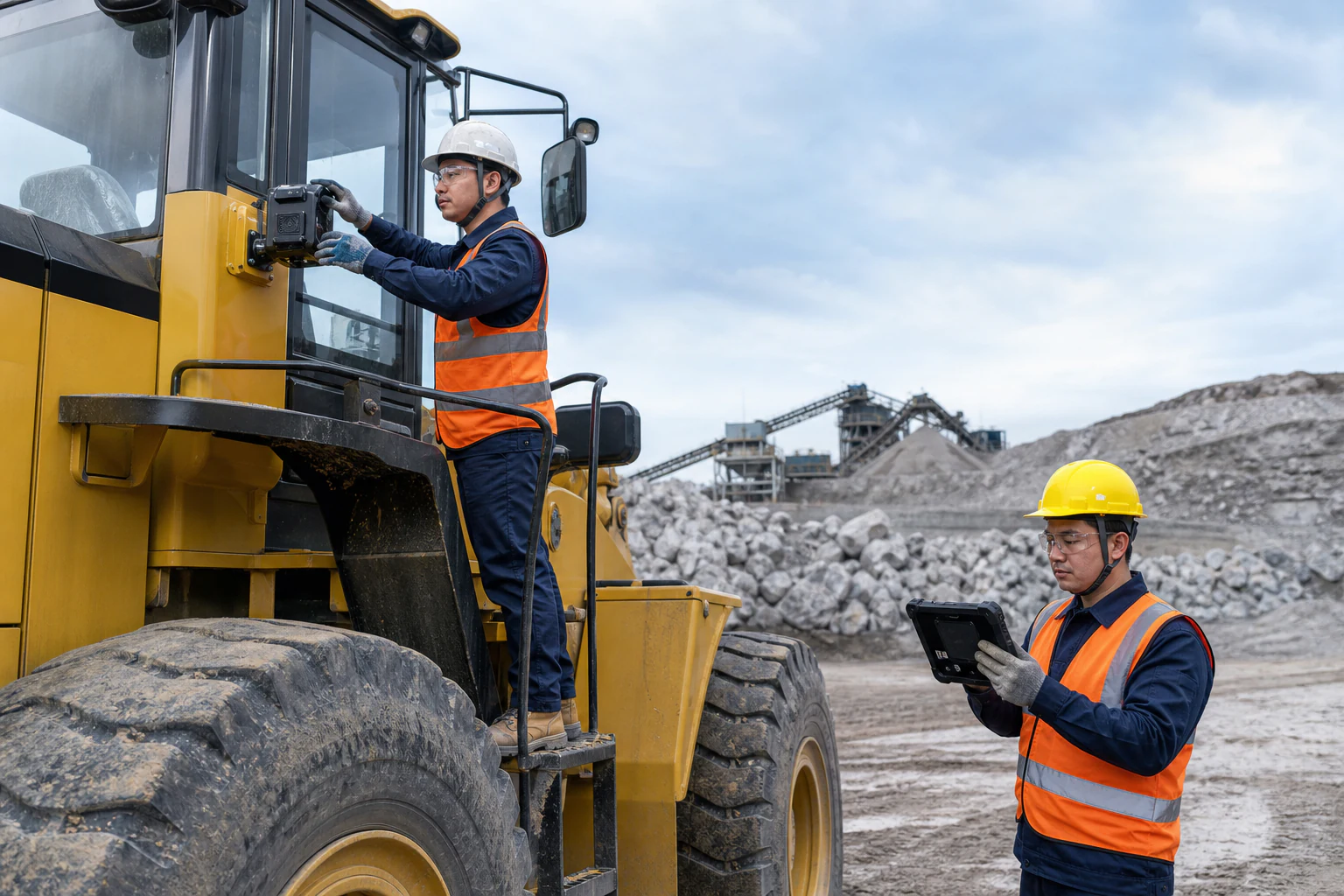

Construction Vehicles
Exterior camera support for demanding construction and work-vehicle environments.
Looking for the CAM-078
for Your Vehicle Project?
Tell us your vehicle type, video system, connector requirement and estimated quantity. Our team will help confirm the right configuration.
Configuration review Confidential project inquiry
