HD Image Sensor
1/3-inch CMOS with 1920 × 1080 resolution
Auto-Rückfahrkamera · CAM-B09

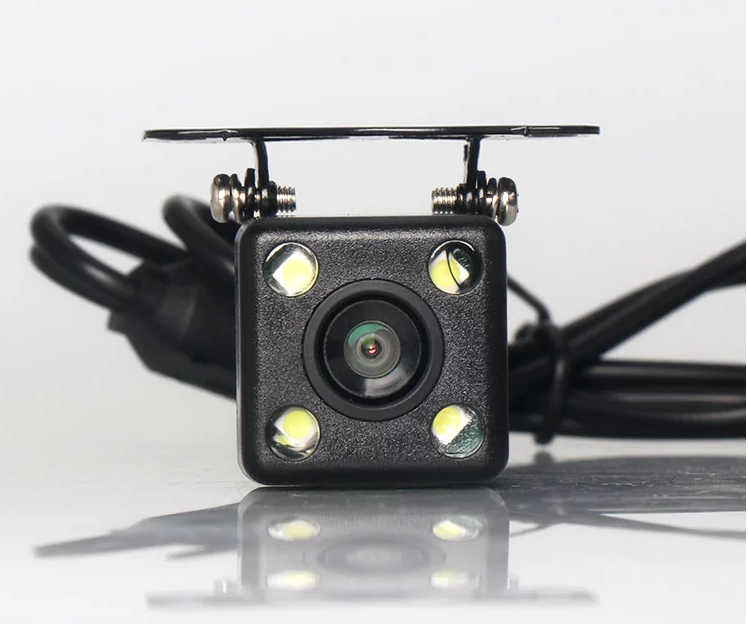

CAM-B09 HD Bracket Backup Camera
Compact waterproof HD rear-view camera with an adjustable mounting bracket for vehicle backup applications.
1080P
HD Resolution
1/3-inch CMOS · 1920 × 1080
170°
Wide Viewing Angle
Wide rear coverage for vehicle monitoring
IP69K
Waterproof Housing
Designed for exterior commercial vehicle use
Night Vision
Low-Light Monitoring
Supports low-light rear monitoring
OEM / ODMProject customization
CVBS / AHDVideo output options
Vehicle ApplicationsTruck · Bus · Fleet · Construction
Adjustable Mounting.
Wide Rear Visibility.
The CAM-B09 is a compact bracket-mounted backup camera for rear-view monitoring. Its adjustable mounting hardware supports installation-angle review for different vehicle positions.
1080PHD Resolution
170°Wide Viewing Angle
IP69KWaterproof Housing
Built for the Road.
Defined by the Details.
Designed for reliable commercial vehicle monitoring in demanding road environments.
170°
170° Viewing Angle
Wide rear coverage for vehicle monitoring
IP69K
IP69K Housing
Waterproof construction for exterior vehicle use
Night Vision
Night Vision
Supports low-light rear monitoring

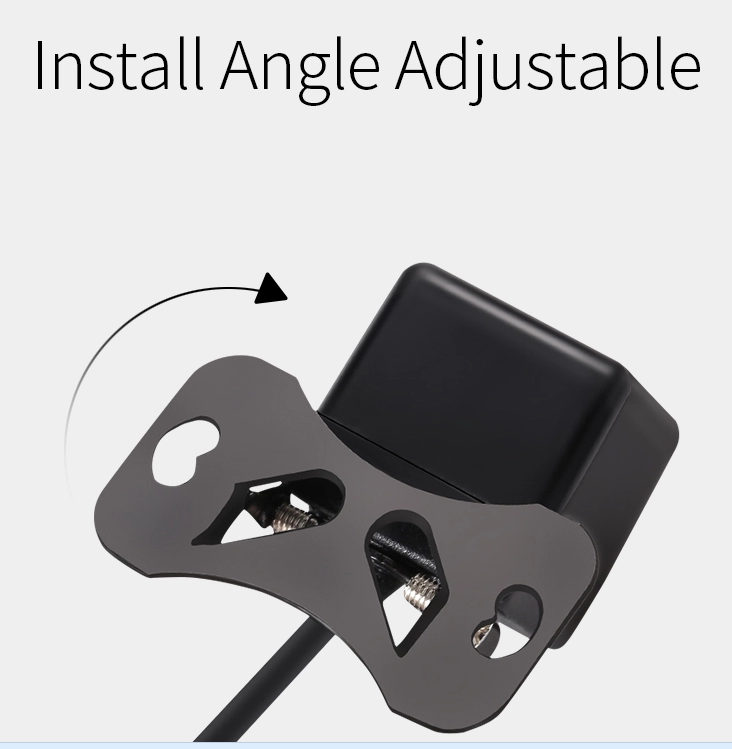

Adjustable Bracket
Adjustable Bracket
Mounting angle can be set for the installation position
Set the Right Angle
for Rear Monitoring
170°Wide Viewing Angle
The adjustable bracket supports installation-angle review for different vehicle positions while the 170° field of view provides broad rear coverage.
Discuss your vehicle projectPerformance at a Glance
Core product data for system selection, sample review and project confirmation.
1080PResolution
170°Viewing Angle
IP69KWaterproof
−20°C ~ +70°COperating Temperature
| Image Sensor | 1/3-inch CMOS |
|---|---|
| Resolution | 1920 × 1080 |
| Viewing Angle | 170° |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 12V |
| Operating Temperature | −20°C to +70°C |
| Video Output | CVBS / AHD |

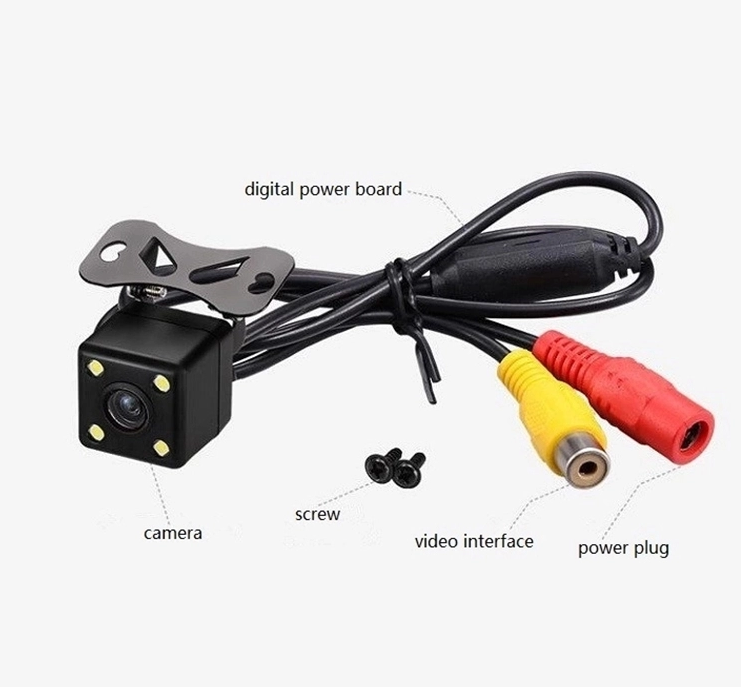

| Anschluss | 4-pin aviation / RCA |
Designed for Commercial
Vehicle Safety
Flexible vehicle visibility for multiple commercial vehicle platforms.
Truck Monitoring
Camera integration support for long-body commercial vehicles.
Bus Safety Monitoring
Additional vehicle visibility support for buses operating in busy passenger environments.
Fleet Safety Systems
A compact camera format for fleet retrofit and vehicle monitoring projects.
Construction Vehicles
Exterior camera support for demanding construction and work-vehicle environments.
Flexible Configuration
for OEM Projects
Tell us your connector, cable, housing and packaging requirements.
Custom Connector
Available for project review and production confirmation.
Custom Cable Length
Available for project review and production confirmation.
Housing Customization
Available for project review and production confirmation.
Packaging Customization
Available for project review and production confirmation.

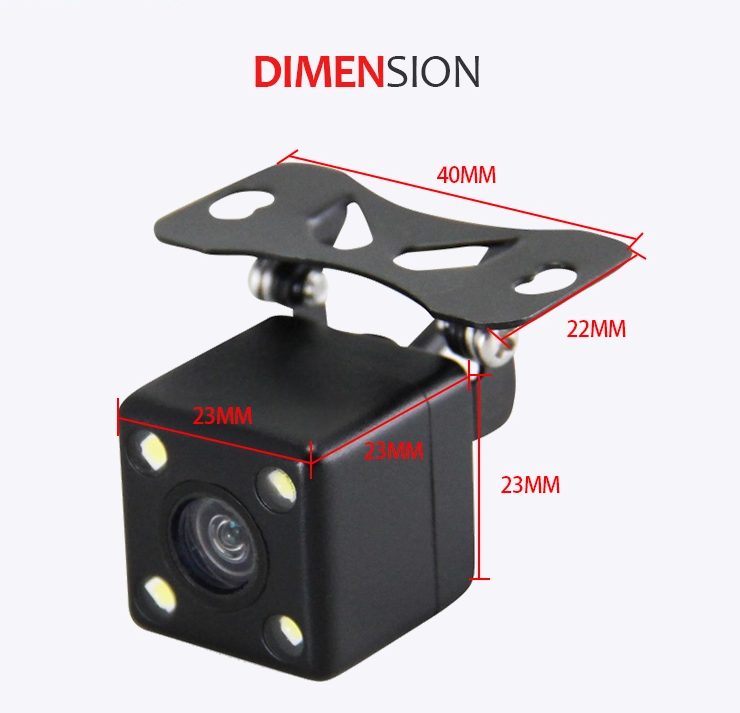

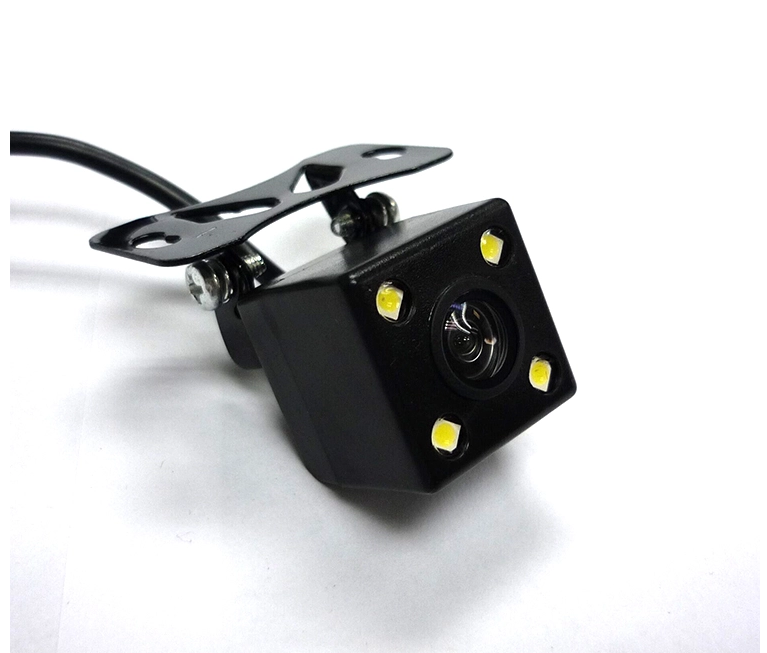

See the CAM-B09
from Every Angle
Explore the CAM-B09 product views and connection details.
Looking for the CAM-B09
for Your Vehicle Project?
Tell us your vehicle type, video system, connector requirement and estimated quantity. Our team will help confirm the right configuration.
