HD Image Sensor
1/3-inch CMOS with 1920 × 1080 resolution
Auto-Rückfahrkamera · CAM-D05
CAM-D05 HD Universal Backup Camera
Compact waterproof HD rear-view camera designed for universal vehicle backup applications.
1080P
HD Resolution
1/3-inch CMOS · 1920 × 1080
170°
Wide Viewing Angle
Wide rear coverage for vehicle monitoring
IP67
Waterproof Housing
Designed for exterior commercial vehicle use
Night Vision
Low-Light Monitoring
Supports low-light rear monitoring
OEM / ODMProject customization
CVBS / AHDVideo output options
Vehicle ApplicationsTruck · Bus · Fleet · Construction
Low-Profile Design.
Wide Rear Visibility.
The CAM-D05 is a compact universal backup camera for rear-view monitoring and parking support. Its low-profile housing is suitable for discreet mounting around the rear license-plate area or another compatible vehicle position.
1080PHD Resolution
170°Wide Viewing Angle
IP67Waterproof Housing
Built for the Road.
Defined by the Details.
Designed for reliable commercial vehicle monitoring in demanding road environments.
170°
170° Viewing Angle
Wide rear coverage for vehicle monitoring

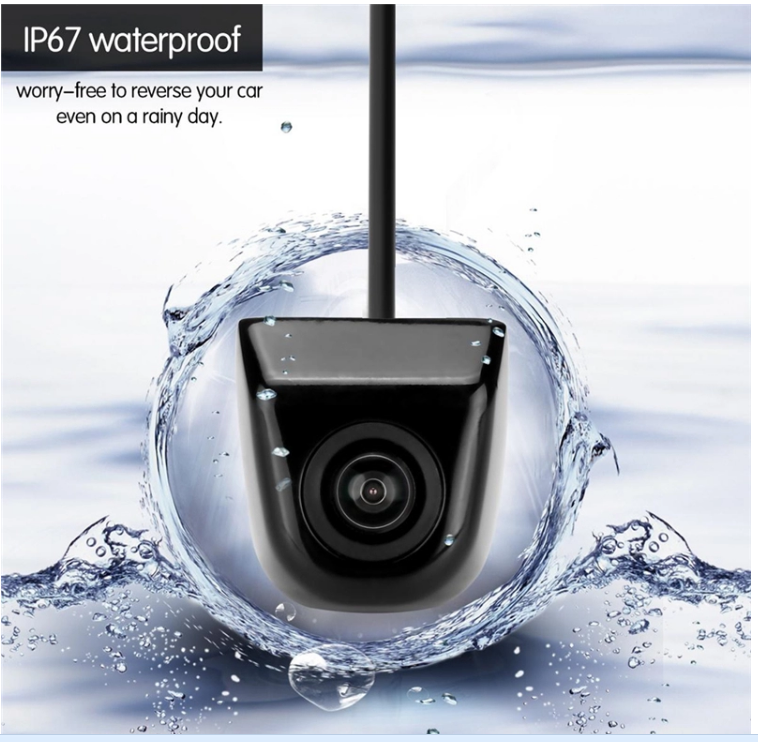

IP67
IP67 Housing
Waterproof construction confirmed for the current product image
Night Vision
Night Vision
Supports low-light rear monitoring
Compact
Compact Housing
Low-profile format for discreet vehicle installation
Discreet Installation.
Broad Rear Coverage.

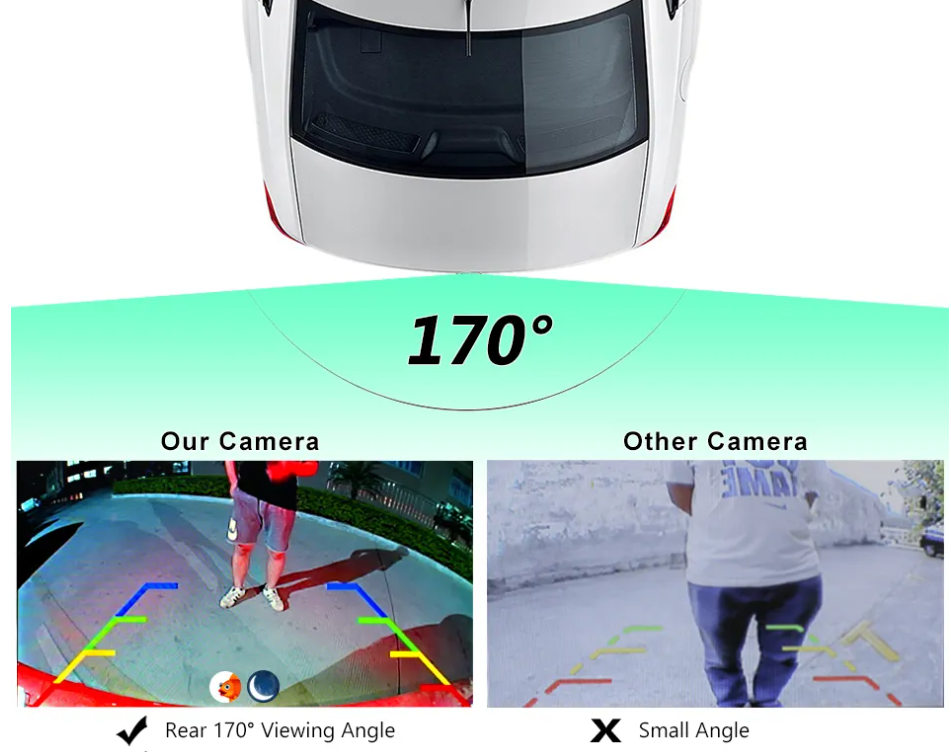

170°Wide Viewing Angle
The low-profile housing is suited to discreet mounting around a compatible rear vehicle position while the 170° field of view supports wider rear monitoring.
Discuss your vehicle projectPerformance at a Glance
Core product data for system selection, sample review and project confirmation.
1080PResolution
170°Viewing Angle
IP67Waterproof
−20°C ~ +70°COperating Temperature
| Image Sensor | 1/3-inch CMOS |
|---|---|
| Resolution | 1920 × 1080 |
| Viewing Angle | 170° |
| Waterproof Rating | IP67 |
| Operating Voltage | DC 12V |
| Operating Temperature | −20°C to +70°C |
| Video Output | CVBS / AHD |
| Anschluss | 4-pin aviation / RCA |
Designed for Commercial
Vehicle Safety

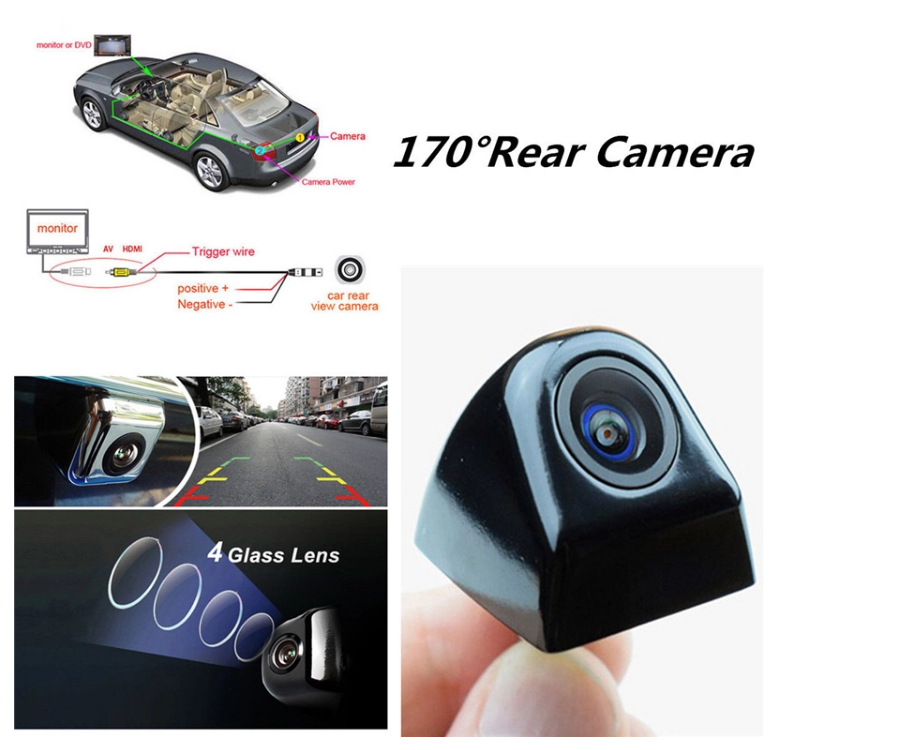

Flexible vehicle visibility for multiple commercial vehicle platforms.
Truck Monitoring
Camera integration support for long-body commercial vehicles.
Bus Safety Monitoring
Additional vehicle visibility support for buses operating in busy passenger environments.
Fleet Safety Systems
A compact camera format for fleet retrofit and vehicle monitoring projects.
Construction Vehicles
Exterior camera support for demanding construction and work-vehicle environments.
Flexible Configuration
for OEM Projects
Tell us your connector, cable, housing and packaging requirements.
Custom Connector
Available for project review and production confirmation.
Custom Cable Length
Available for project review and production confirmation.
Housing Customization
Available for project review and production confirmation.
Packaging Customization
Available for project review and production confirmation.

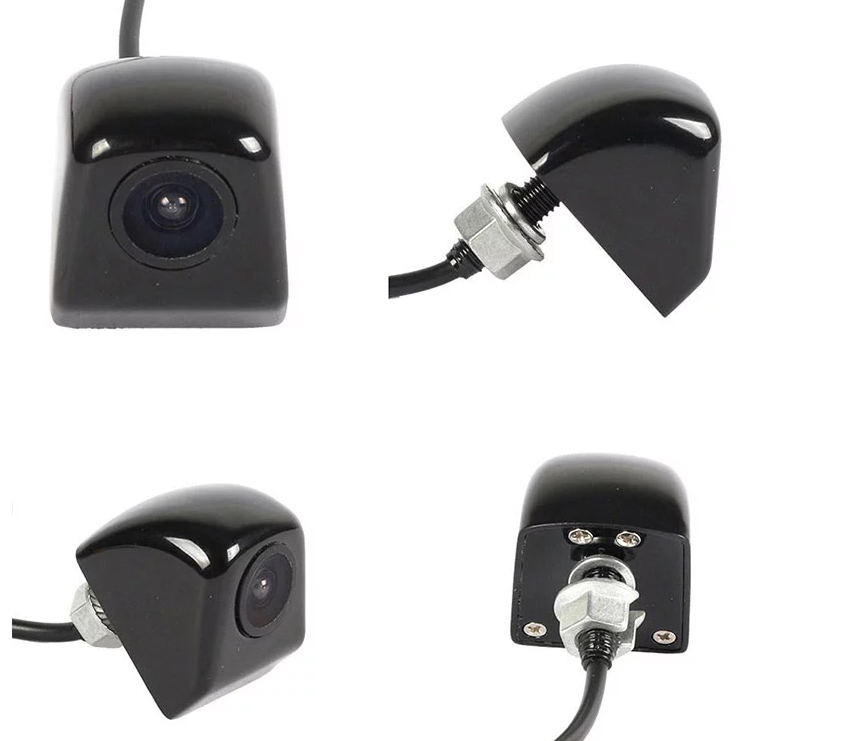

See the CAM-D05
from Every Angle
Explore the CAM-D05 product views and connection details.
Looking for the CAM-D05
for Your Vehicle Project?
Tell us your vehicle type, video system, connector requirement and estimated quantity. Our team will help confirm the right configuration.
