HD Image Sensor
1/3-inch CMOS with 1920 × 1080 resolution
Car Side View Camera · CAM-EYE02
CAM-EYE02 HD 360° Side View Camera
Compact waterproof HD camera for front, rear and side-view use on cars and commercial vehicles.
1080P
HD Resolution
1/3-inch CMOS · 1920 × 1080
170°
Wide Viewing Angle
Wide coverage for front, rear or side monitoring
IP69K
Waterproof Housing
Designed for exterior commercial vehicle use
Night Vision
Low-Light Monitoring
Night-vision support listed in the supplied specification
OEM / ODMProject customization
CVBS / AHD / bothVideo output options
Vehicle ApplicationsCar · Truck · Bus · Van · Construction
Compact Eyeball Design.
Flexible Vehicle Visibility.
The CAM-EYE02 is a compact waterproof vehicle camera intended for front-view, backup and side-view applications. Its eyeball-style housing supports discreet installation on cars as well as trucks, buses, vans and construction vehicles.
1080PHD Resolution
170°Wide Viewing Angle
IP69KWaterproof Housing
Built for the Road.
Defined by the Details.
Designed for reliable commercial vehicle monitoring in demanding road environments.
170°
170° Viewing Angle
Wide coverage for front, rear or side monitoring
IP69K
IP69K Housing
Waterproof construction for exterior vehicle use
Night Vision
Night Vision
Supports low-light vehicle monitoring
CVBS / AHD
CVBS / AHD Output
Output options for compatible vehicle displays
Flexible Installation.
Wide 170° Coverage.
170°Wide Viewing Angle

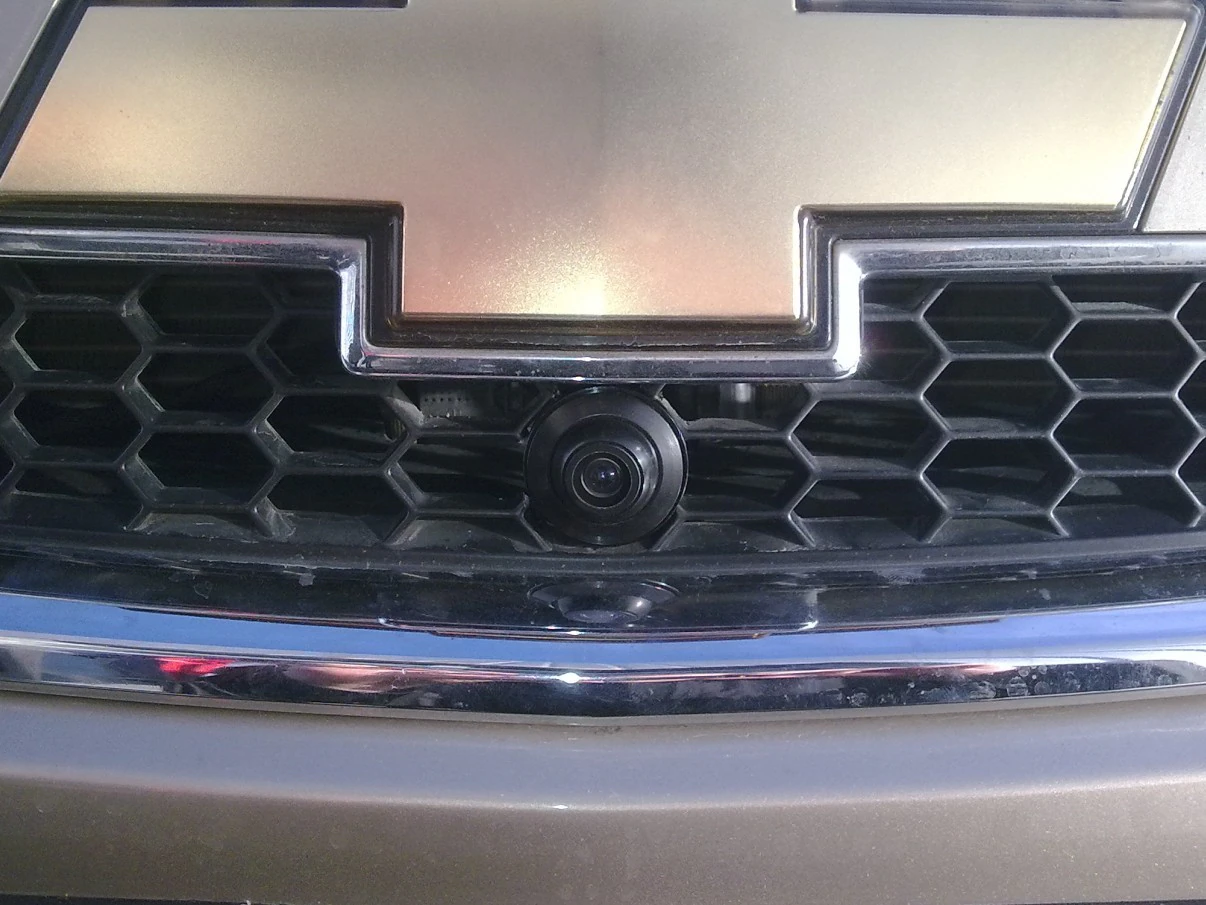

The compact eyeball housing supports discreet installation at a compatible vehicle position while the 170° field of view provides broad front, rear or side coverage.
Discuss your vehicle projectPerformance at a Glance
Core product data for system selection, sample review and project confirmation.
1080PResolution
170°Viewing Angle
IP69KWaterproof
−20°C ~ +70°COperating Temperature
| Image Sensor | 1/3-inch CMOS |
|---|---|
| Resolution | 1920 × 1080 |
| Viewing Angle | 170° |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 5V–12V |
| Operating Temperature | −20°C to +70°C |
| Video Output | CVBS / AHD / both |

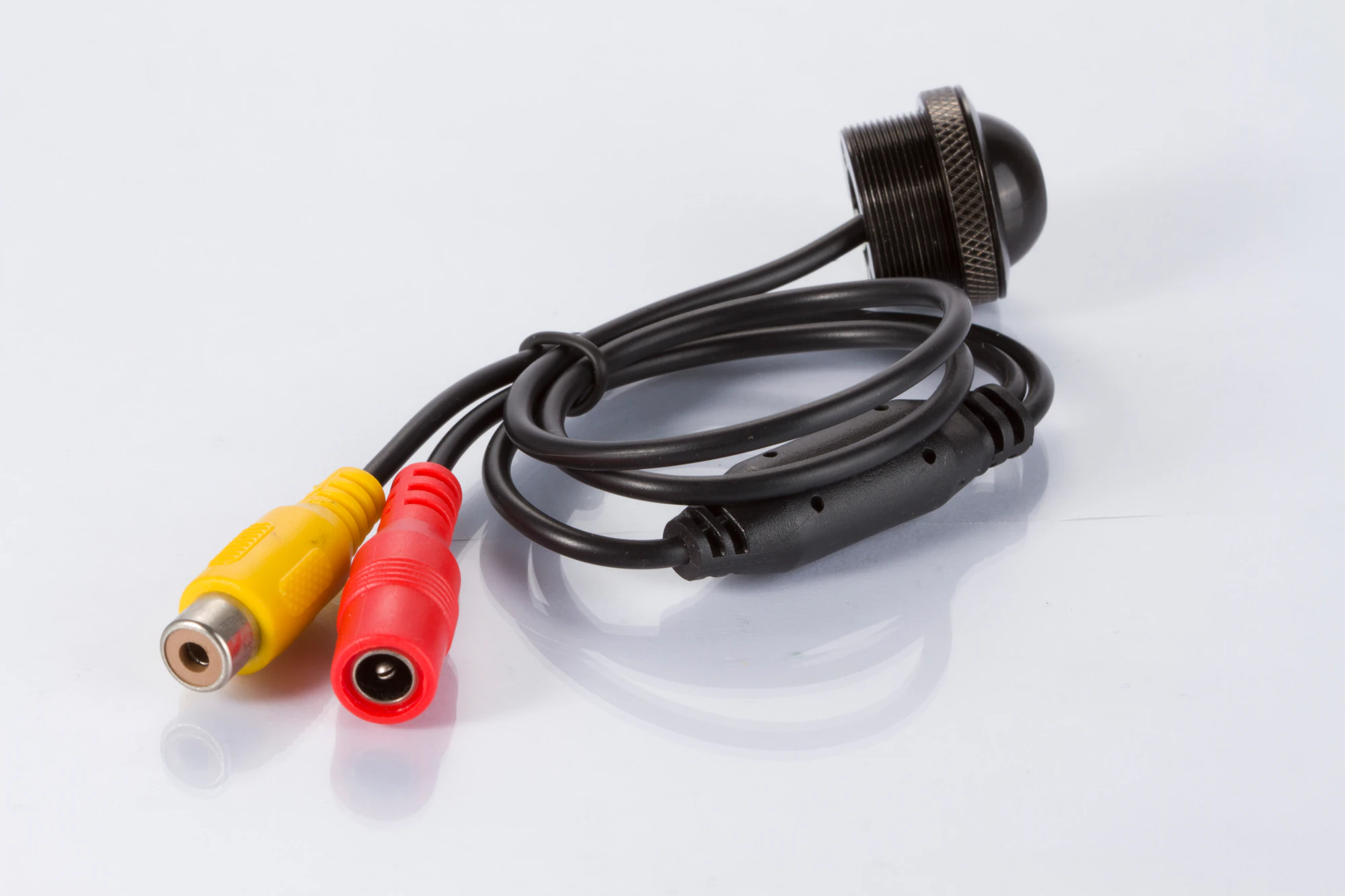

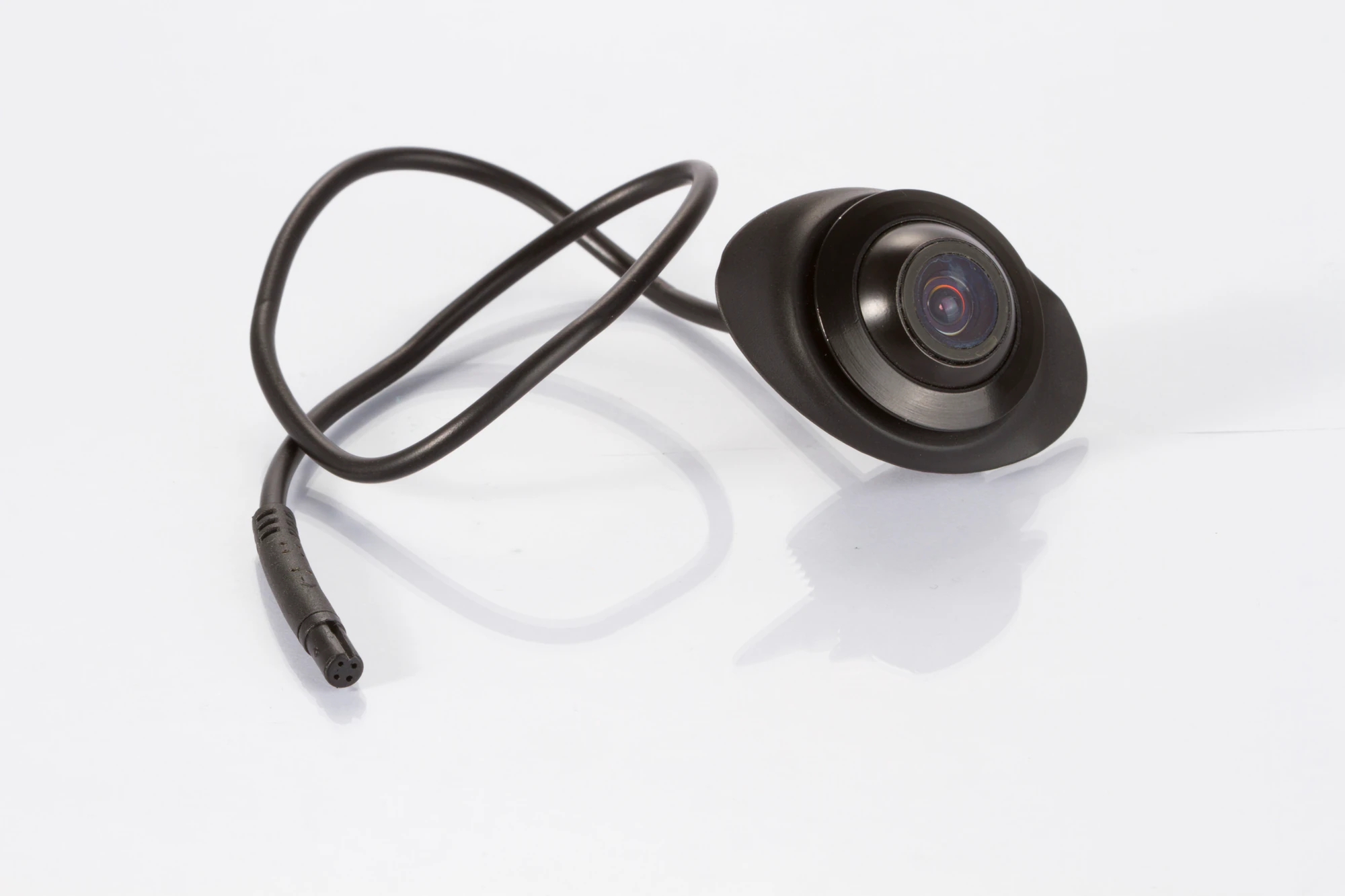

| Anschluss | 4-pin aviation / RCA |
Designed for Commercial
Vehicle Safety
Flexible vehicle visibility for multiple commercial vehicle platforms.
Truck Monitoring
Camera integration support for long-body commercial vehicles.
Bus Safety Monitoring
Additional vehicle visibility support for buses operating in busy passenger environments.
Fleet Safety Systems
A compact camera format for fleet retrofit and vehicle monitoring projects.
Construction Vehicles
Exterior camera support for demanding construction and work-vehicle environments.
Flexible Configuration
for OEM Projects
Tell us your connector, cable, housing and packaging requirements.
Custom Connector
Available for project review and production confirmation.
Custom Cable Length
Available for project review and production confirmation.
Housing Customization
Available for project review and production confirmation.
Packaging Customization
Available for project review and production confirmation.

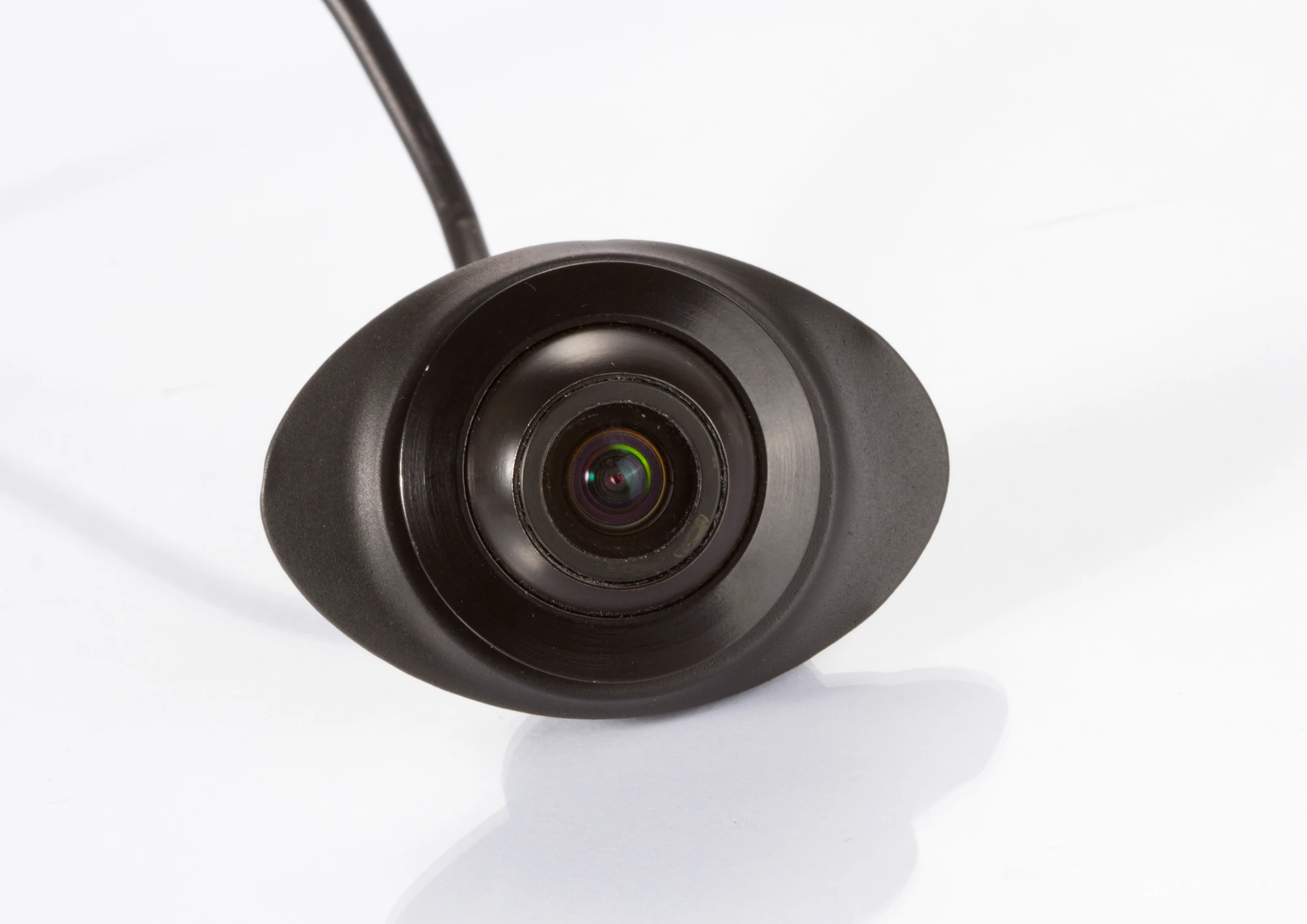

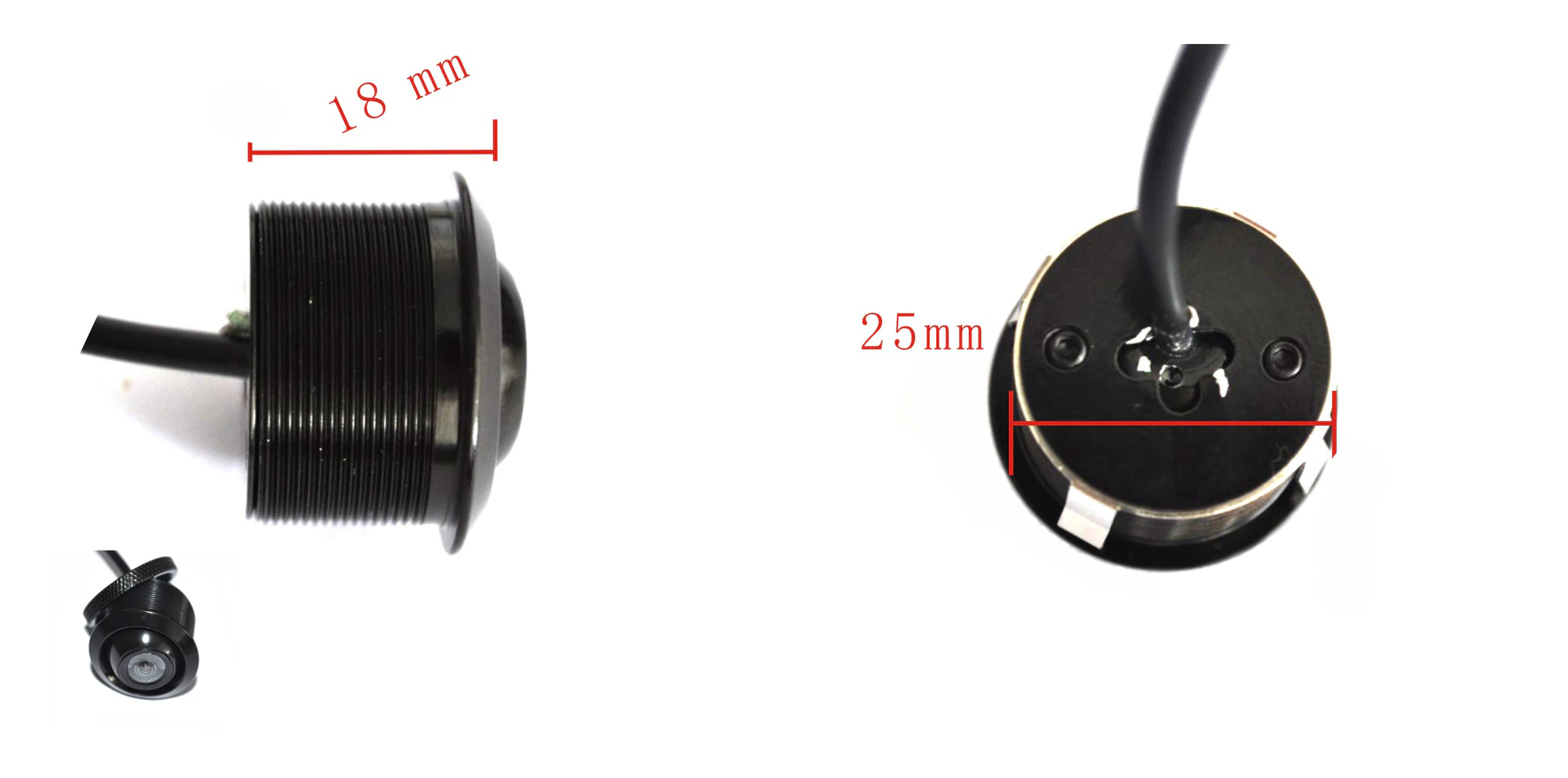

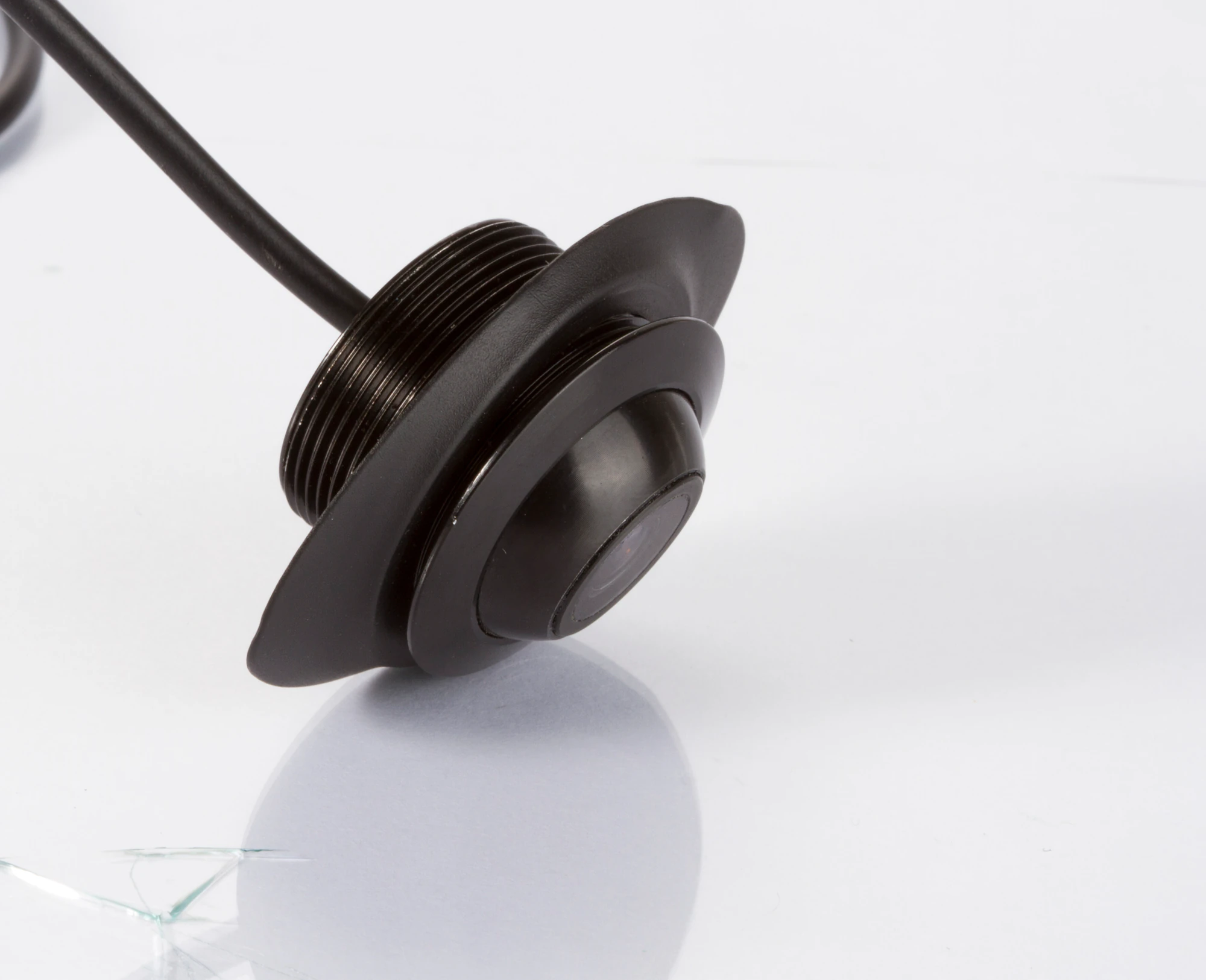

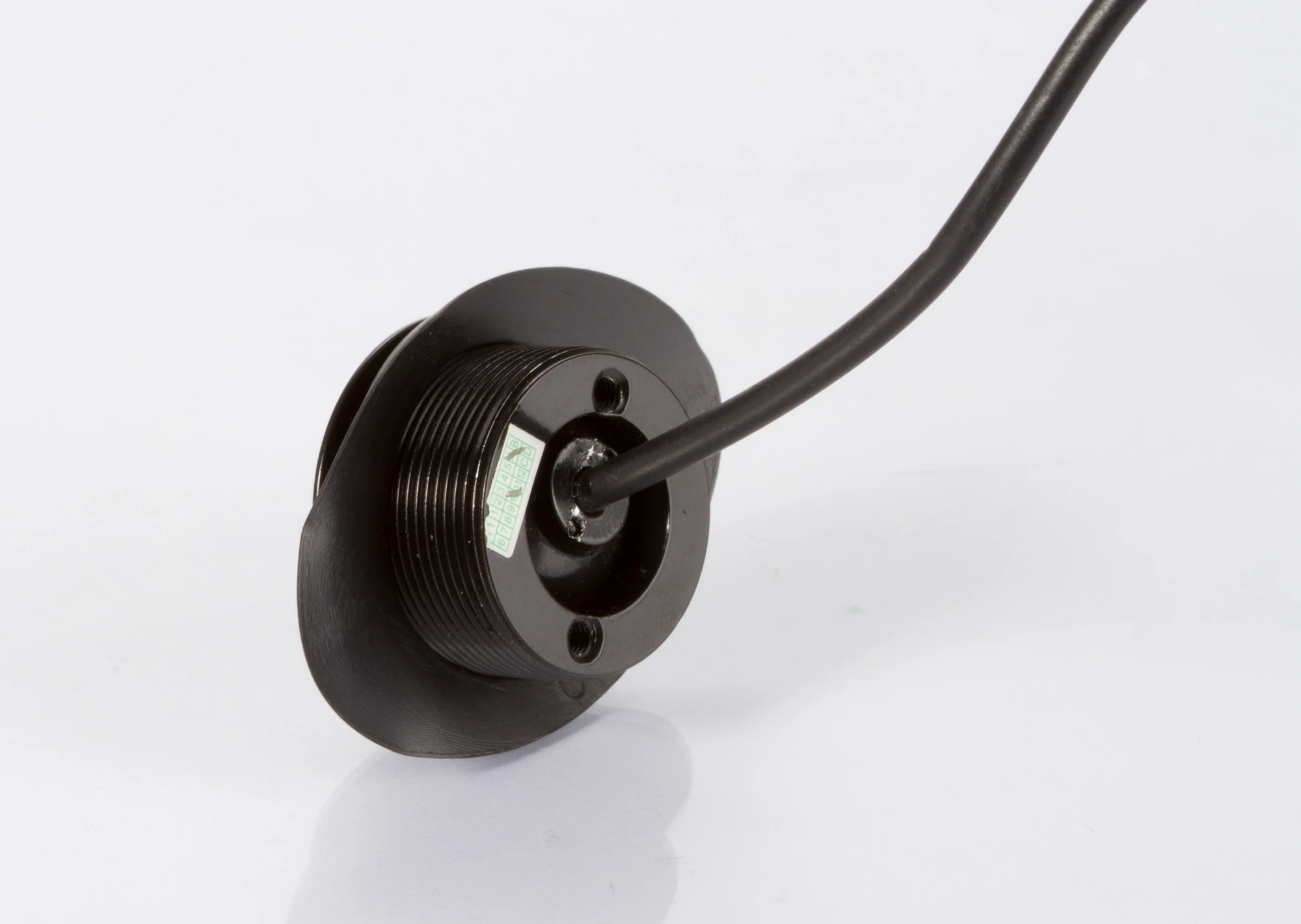

See the CAM-EYE02
from Every Angle
Explore the CAM-EYE02 product views and connection details.
Looking for the CAM-EYE02
for Your Vehicle Project?
Tell us your vehicle type, video system, connector requirement and estimated quantity. Our team will help confirm the right configuration.
Configuration review Confidential project inquiry
