Side View Camera for Commercial Vehicles

CAM-ST01 HD Side View Camera

Compact waterproof HD side view camera designed for trucks, buses, vans and other commercial vehicles.

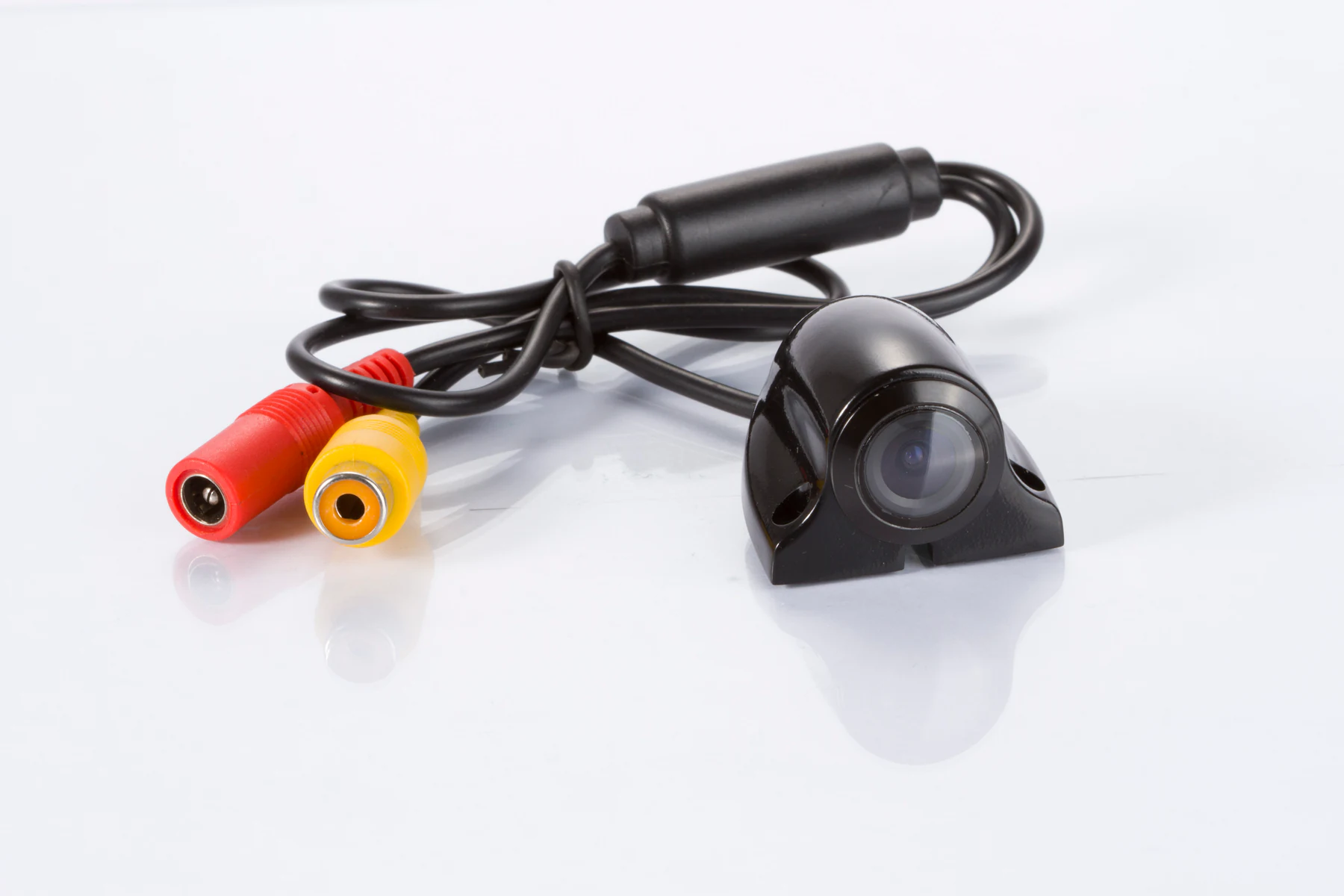

Features a 1/3-inch CMOS sensor, 1920 × 1080 sensor resolution, a 170° viewing angle and DC 12V operation. Choose the CVBS or AHD output version and 4-pin aviation or RCA connector to match your cab monitor.

Compact Design.
Wide-Angle Visibility.

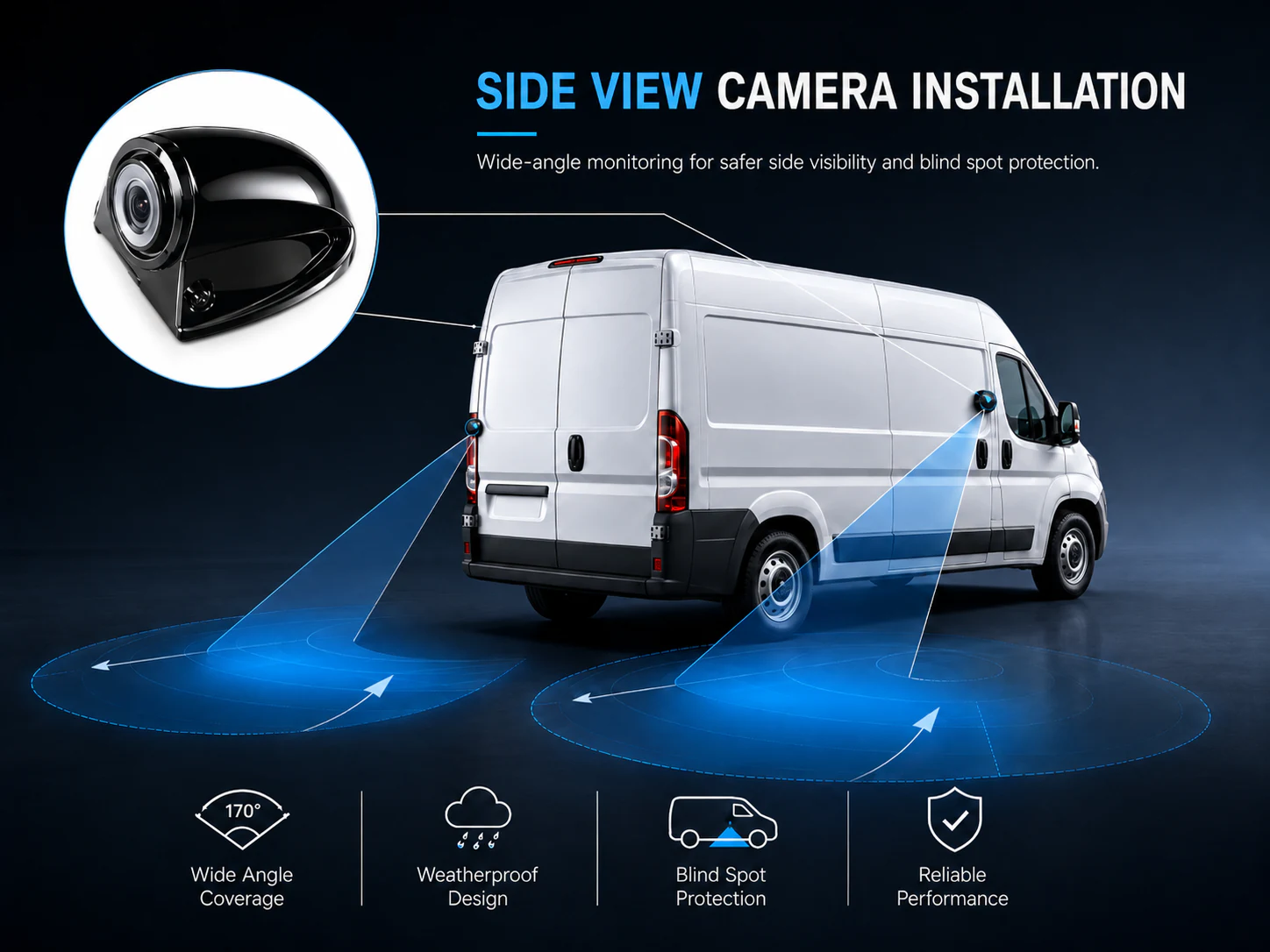

The CAM-ST01 is a compact side view camera for commercial vehicles that need clearer lateral visibility during driving, parking and fleet operation. Its low-profile housing is suitable for trucks, buses, vans and construction vehicles.

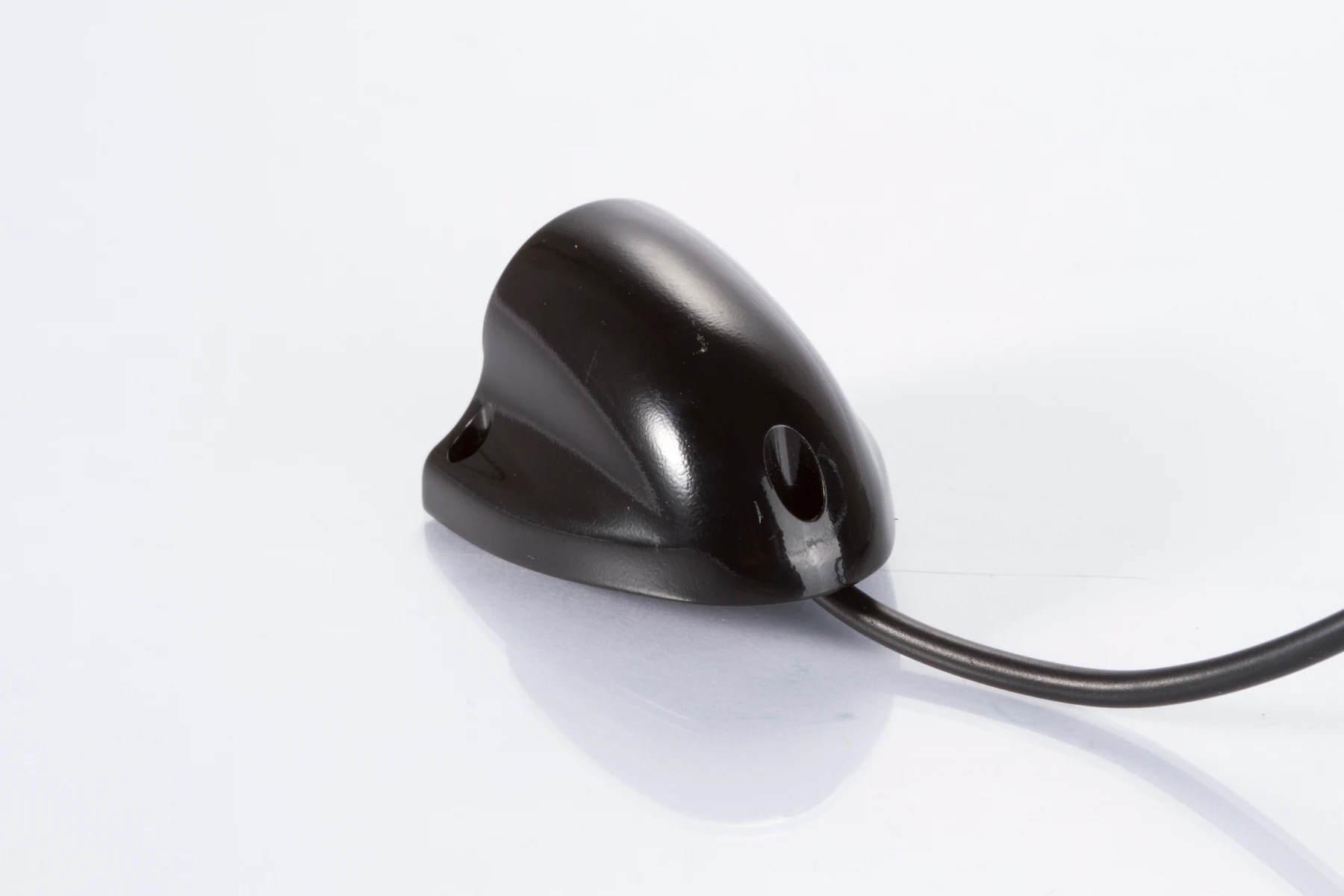

Side view of the CAM-ST01 commercial vehicle camera housing

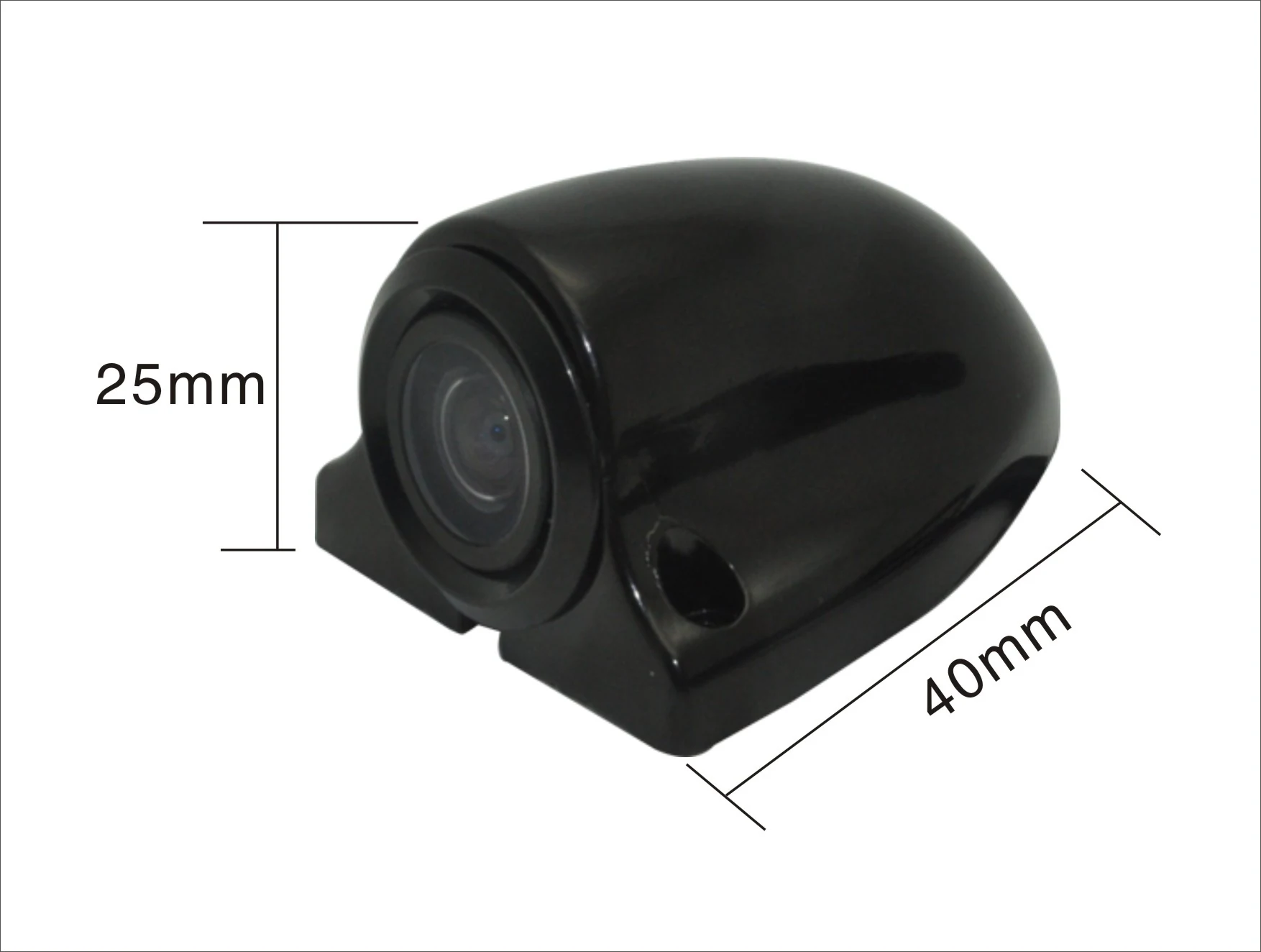

CAM-ST01 side view camera dimensions showing 40 mm length and 25 mm height
CAM-ST01 Product Dimensions

Technical Specifications

Image Sensor
1/3-inch CMOS
Resolution
1920 × 1080
Viewing Angle
170°
Waterproof Rating
IP69K
Operating Voltage
DC 12V
Operating Temperature
−20°C to +70°C
Video Output
CVBS / AHD
Connector
4-pin aviation / RCA

Match the selected CVBS or AHD output resolution to the monitor input. Supply the camera with DC 12V; use a suitable regulated power supply on 24V vehicles. IP69K applies to the camera housing. Seal and protect connectors and harness joints during installation.

Vehicle Applications

Select the mounting position and check compatibility on the target vehicle.

Chinese technicians calibrating a camera installation on a commercial truck

Truck Monitoring

Camera integration support for long-body commercial vehicles.

Technician installing a camera on a commercial passenger bus

Bus Safety Monitoring

Additional vehicle visibility support for buses operating in busy passenger environments.

Chinese technicians installing and testing a vehicle camera system inside a fleet van

Fleet Safety Systems

A compact camera format for fleet retrofit and vehicle monitoring projects.

Chinese technician calibrating an exterior camera on a wheel loader

Construction Vehicles

Exterior camera support for demanding construction and work-vehicle environments.

Frequently Asked Questions

What area can this side camera show?

It can provide a view along the side of a vehicle. Select the mounting point and check the view on the target vehicle.

Does a side camera replace mirrors?

No. Use it alongside required mirrors, driver observation and site procedures.

How do I choose a compatible monitor?

Check the selected camera output, monitor input, connector, wiring and power requirements before connecting.

How should the camera position be checked?

Test the mounting point, image coverage and cable route on the intended vehicle before final installation.

What information helps with a sample request?

Share the vehicle model, intended camera position, monitor input and connector requirements so the configuration can be reviewed.
